During the early 1980's, the SAAF faced modern Soviet aircraft and weapons in Angola. Being handicapped by a UN arms embargo, the SAAF had to act urgently to improve its capabilities.
The SAAF never had a large number of combat aircraft to spare. It only had about forty combat-ready 1970's-vintage Mirage F1's. If it was to take them out of service to upgrade them, it had no replacement other than the even older, 1960's-vintage Mirage III's. These were shorter-ranged, had less powerful engines and obsolete combat systems, and could carry less ordnance. This meant any upgrade would have to be applied first to the older Mirage III's, as they were the only aircraft that could be spared from combat operations for that purpose.
Fortunately, this wasn't a bad choice in the end. Two major aircraft programs had demonstrated what could be done by building on the foundation of the Mirage III, probably one of the most successful proven combat aircraft of it's day. First, Dassault Aviation was by then producing the successor to the Mirage F1, the Mirage 2000, which returned to the delta-wing format of the Mirage III.
Mirage III D
Israel agreed to supply systems and components, and the green light for the Cheetah project was given in the early 1980's. In order to provide a measure of diplomatic and political 'cover' for Israel, it was decided (as with many South African weapons projects) to claim that it was an purely indigenous development. Despite huge similarity between the Kfir and the Cheetah, officials in on both sides steadfastly deny that the two aircraft had anything in common.
The SAAF provided Israel a two-seat Mirage IIID as the prototype air frame for conversion. It was stripped down completely and all components subject to metal fatigue or stress were replaced, effectively returning the air frame new condition. An extended nose cone was fitted, derived from the Kfir TC.2 model, which housed advanced electronic systems, and small canard wings were fitted above the air intakes to improve low-speed handling and angle of attack. (The canards on the D and E model Cheetahs were smaller than those used on the later Cheetah C's, reportedly because it was too difficult to reinforce the fuselage frames in the engine intake area to accommodate the larger units. The Cheetah C's used the same full-size canards as the Kfir; but their air frames were supplied by Israel, as noted below. Presumably they weren't subject to the same limitations as the French-air frame-based Cheetah D's and E's.)
Israel Aircraft Industries (IAI), together with several other companies in that country's defense industry, had already produced a series of Mirage derivatives. Israel had purchased Mirage III aircraft from France prior to the Six-Day War of 1967, and had ordered a further 50 Mirage 5's (a simplified version of the Mirage III). However, these were embargoed by France after the conflict. Undaunted, Israel stole the plans to the Mirage III from Switzerland, which was license-manufacturing the aircraft (Swiss engineer, Alfred Frauenknecht, would later be sentenced to 4½ years imprisonment for his collaboration with Israel).
Israel used these plans to develop its own fighters. The first was the Nesher, almost an exact copy of the Mirage 5 (indeed, it's so exact that some sources suggest IAI actually assembled Mirages, clandestinely supplied in kit form by France, rather than manufactured the Nesher itself). A total of 60 Neshers appear to have been manufactured, most sold to Argentina at the end of the 1970's under the name of Dagger
These aircraft confronted British forces during the Falklands War. Israel went on to produce the Kfir, a considerably upgraded Mirage derivative with Israeli electronics with a US J79 turbojet engine (As on the F-4 Phantom II fighter-bomber, also operated by Israel at the time).
Argentine "Dagger"
The IAI Nammer ("Leopard", frequently mistranslated as "Tiger") was a fighter aircraft developed in Israel in the late 1980s/1990s as a modernised version of the Kfir for the export market. Although a prototype was built and flown, buyers were not forthcoming and development was ceased. The avionics of the Nammer were those of the cancelled Lavi project.
The Nammer promised an upgrade package for existing Mirage III and Mirage 5 air frames. Two configurations were proposed, one based around re-engining with a General Electric F404, the other around retaining the Mirage's SNECMA Atar engine. Elta EL/M-2011 or EL/M-2032 fire-control radar was to be fitted. The first of these options maximised performance and range, the second maximised the aircraft's air-to-air targeting capability. As development progressed, the Nammer came to be advertised as a new-build aircraft with the EL/M-2032 an integral part of the package, and customers able to choose their preferred engine out of the F404 (or its Volvo derivative, the RM-12), the SNECMA M53, or the Pratt & Whitney PW1120. The design strongly resembled the Kfir C-7,but was easily distinguished by its longer nose and lack of a dorsal air scoop under the tail fin
Details of the weapon and control systems fitted to the Cheetah have never been publicly revealed by the SAAF, but it can probably assumed they were close to or identical to those found on various models of the Kfir. IAI lists them as including, in the latest Kfir version:
The radar used in the Cheetah D and E models (and in the Kfir C.7) was the simple Elta EL/M-2001Bunit. The Cheetah C, the last development of this project, possibly had the much more advanced Elta EL/M-2032 . The Cheetah C's electronic systems were probably on a par with those of the F-16C/D fighter-bombers of the USAF at the time.
The intermediate single-seat Cheetah E model:
Here's the final iteration of the Cheetah, the 'C' model:
Sixteen two-seat Cheetah D's were produced, as well as 16 single-seat Cheetah E's, the latter mostly converted from Mirage IIIEZ air frames (although some were reportedly converted from air frames supplied by Israel, due to a shortage of suitable South African Mirages). All had been delivered by 1991. Finally, 38 Cheetah C's were produced under the auspices of 'Project Tunny'.
The Cheetah C's were reportedly based on stripped down Kfir air frames supplied by Israel, modified to accept the French Atar engine rather than the US J79. Most of the SAAF's Mirage III's had been delivered during the 1960's. Some had reached the end of their fatigue lives, and were thus unsuitable for conversion. Others had been lost in accidents, and the Cheetah E conversions had absorbed many of the remainder.
Given these two facts, there would not have been enough usable single-seat Mirage III air frames left in the SAAF inventory to produce 38 Cheetah C's. one can safely assume that the reports that say Israel supplied the fuselages for the latter is accurate. Apart from the prototype Cheetah D, most of the conversions were carried out in South Africa by Atlas Aircraft Corporation (today part of Denel Aviation), with Israeli technical assistance (which decreased as local industry gained experience and competence).
The C models were delivered from 1993-1995, replacing the Cheetah E's, which were retired. Some of the two-seat Cheetah D's were retained in service as lead-in trainers for the C versions, and to provide a specialist strike function if required. A single experimental Cheetah R version was produced, using a Mirage IIIR2Z airframe, but no other reconnaissance versions were converted, and the Cheetah R did not enter squadron service, being retired soon afterwards. The reconnaissance function was taken over by Cheetah C's fitted with pod-mounted cameras.
The first ACW prototype was tested on the only Cheetah R, and a more evolved model was tested on a two-seat Cheetah D. The latter improved the Cheetah's sustained turn rate by 14%, and permitted maximum takeoff weight to be increased by well over half a ton. It also permitted angles of attack up to 33 degrees at low speeds, with much greater stability, at the expense of a reduction of approximately 5% in the aircraft's maximum supersonic speed. However, for budgetary reasons the SAAF declined to upgrade their Cheetahs with the ACW, and it was never put into production.
If it lost aircraft due to combat or accident it could not replace them, due the embargo; and it had to keep its combat planes as up-to-date as possible, to ensure they did not become so obsolete that they risked being shot down in large numbers by more advanced enemy aircraft.

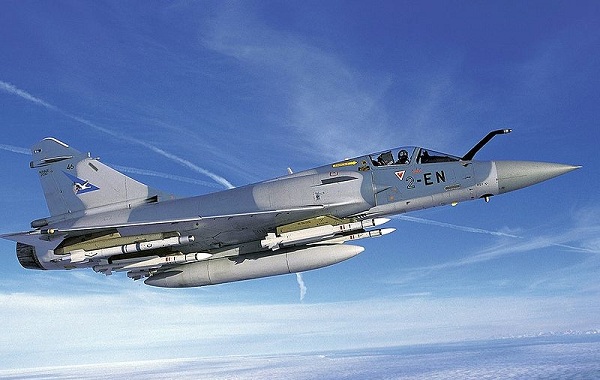

Mirage 2000-5F of the French Air Force
South Africa had friendly ties with Israel, particularly in the military field. South African technological institutions such as the Council for Scientific and Industrial Research (CSIR), and local defense companies such as Kentron (today Denel Dynamics), Reutech and others, were developing advanced radar and electro-optical detection and guidance systems. The latter companies in particular often collaborated with their Israeli counterparts (up to and including producing Israeli components and systems under license in South Africa). It would therefore be entirely feasible for the advanced combat systems of the Kfir to be 'transplanted' into the Mirage III's of the SAAF, including local assembly and partial production if necessary.
AI Kfir, in US Navy colors under the designation F-21A,
where it served as an adversary aircraft for Dissimilar Air Combat Training
Given that the Cheetah prototype was converted in Israel, it's very interesting to note the proposed IAI Nammer aircraft of the late 1980's. Wikipedia info:
You can't help but notice that the line drawing above is virtually identical to the pictures of the Cheetah C and Kfir 2000 . Also note that the translation of 'Nammer' is the name of a big cat. A co-incidence? Did the prototype' of the Nammer become the prototype SAAF Cheetah C ? It would certainly have been a good cover story to disguise IAI's involvement with the latter program.
SAAF Cheetah C in Service Ysterplaat AFB
Pilot friendly advanced "Glass" Cockpit;Hands On Throttle And Stick (HOTAS) operation;
Advanced multi-mode Fire Control Radar (FCR) with SAR; State-of-the-art weapons delivery, including Beyond Visual Range missiles; Digital Moving Map (DMM); Electronic Warfare (EW) Suite.
The Israeli lineage of the Cheetah is clearly demonstrated by comparing the aircraft side-by-side. The SAAF Cheetah D, the initial two-seat version of the aircraft:

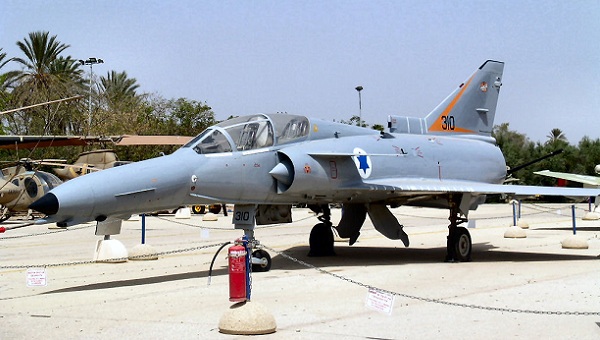

Kfir TC.2 of the Israeli Air Force:
Note identical extended and slightly downward-sloping nose cones, housing the electronics; the canard wings above the engine air intakes; and the strakes on the nose cone. Note the second curved strake running from the base of the nosecone down and back along the bottom of the fuselage. The Cheetah has an air refueling probe on the starboard side of the cockpit, which is absent from the Kfir TC.2, but an identical probe may be seen on other Kfir models, as shown below. The rear fuselage is different as the Cheetah uses a French Atar engine, while the Kfir uses the US turbojet; but from the engine forward, there's virtually no difference.

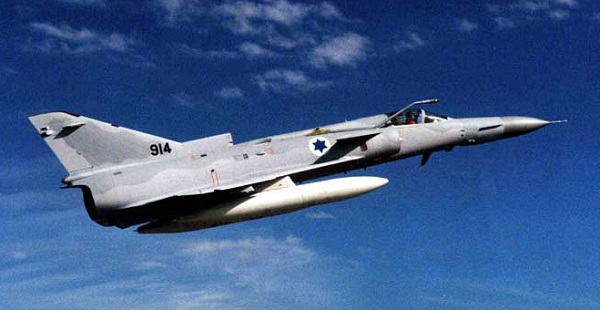

And the single-seat Kfir C.7:
Note that both have small strakes at the tip of the nose cone, identical instrument probes beneath it, and an in-flight refueling probe that goes to the starboard air intake, rather than behind the cockpit, as in the later Cheetah C. The Cheetah E also incorporates the Kfir C.7's additional two weapons stations beneath the air intakes. I therefore consider the Cheetah E and the Kfir C.7 to be essentially identical from the engine forward.
IAI publicity photograph of their Kfir 2000
The refueling probes are different, but the noses of the two aircraft are, again, almost identical. (Note, too, their similarity to the IAI Nammer mentioned above.) As far as its weapons and electronic systems are concerned, the Cheetah C is the functional equivalent of the Kfir 2000 (also known as the Kfir C.10.
The first sixteen Mirage III's supplied to the SAAF were 'C' model interceptors, with a shorter fuselage than subsequent models - too short to be converted into Cheetah C's, which have a longer fuselage. They could not have been lengthened without a reconstruction so extensive (and expensive) that it would have effectively meant producing a new air frame.
Vinten Vicon 18 Series 601 reconnaissance pod mounted beneath a Cheetah C
Some of the Cheetah D aircraft had been converted from Mirage IIID2Z airframes, which had been delivered with Atar 09K-50 engines in the 1970's. Naturally, they retained these more powerful engines in their Cheetah guise. The remainder of the D's, and the Cheetah E models converted from Mirage IIIE's, retained their 1960's-vintage Atar 09C turbojet engine, as local production of the more powerful Atar 09K-50 (used in the Mirage F1) had proved economically unfeasible - South Africa's technological base was insufficiently advanced to manufacture all of the required components. In any event, due to changing circumstances , the lower-powered Cheetah models would all be retired within a few years.
Efforts were mounted to obtain additional 9K-50 engines to equip the Cheetah C models. The Mirage F1 was operated by a number of other countries, including Jordan, Iraq, Morocco and Qatar, all of whom also purchased armaments from South Africa. It is possible that one or more of those nations made Atar 9K-50 engines available to South Africa in return for arms shipments. The most likely candidate would have been Iraq.
They bought over 80 Mirage F-1's from France, and, as mentioned above, obtained 100 G5 howitzer cannon from South Africa. (Iraq was engaged in a war with Iran from 1980-1988).
Since combat operations would naturally impose greatly increased wear on the engines of its aircraft, it could order large numbers of replacement engines without arousing suspicion. I have little doubt that some of these replacements were swapped for South African artillery and/or ammunition - probably at a very favorable 'rate of exchange', because South Africa needed the engines very badly.)
The retirement of the SAAF's Mirage F1 fleet in the 1990's was partly (although by no means exclusively) caused by the need to transplant at least some of their engines into the Cheetah fleet. The surviving F1CZ interceptors were retired in 1992.
Some of their engines went into the Cheetah C program. The Cheetah D and E versions (which had all entered service by 1992) took over from them until the Cheetah C's were ready. The last of the Mirage F1AZ's were retired in 1997, after all the Cheetah C's had entered service.
Mirage F1
If the Cheetah aircraft had a major weakness, it was their engines. The Atar 9C engines used by Mirage III's were rated at a maximum of 13,240 pounds static thrust with afterburner. The Atar 9K-50 engine of the Mirage F1 was rated at 15,873 pounds static thrust with afterburner, an increase in power of almost 20%.
The core technology of both these engines was based on the German BMW 003 axial-flow turbojet developed during World War II, and was becoming increasingly dated. Technology that old simply couldn't keep pace with more modern developments. The Atar 9-series turbo jetengines weren't nearly as powerful (or as economical) as the turbofan engines installed in more modern military aircraft such as the F-16 or the MiG-29 (using two Klimov RD-33 turbofans, each rated at 18,285 pounds static thrust with afterburner. Such engines weren't available to South Africa at the time the Cheetah program was developed, so the SAAF had to make do with what it could get.
The Cheetahs used an upgraded wing, offering improved aerodynamic qualities compared to that originally fitted to the Mirage III. The wing design from the Carver program was experimentally adapted to fit the Cheetahs as the Advanced Combat Wing, or ACW. The diagram below shows how more advanced Cheetah wings evolved, from the initial production variant to a final design with missile stations on the wingtips. The ACW was flight-tested, but never entered service.
The ACW had a fixed, drooped leading edge. An early iteration (Version 2 as shown above) had a simple notch in the leading edge at mid-span, while a later model (Version 3 above) had a much wider slot. This permitted underwing mounting of the SAAF's standard 500-liter (about 132 US gallon) drop tanks, which would otherwise have struck the lowered leading edge. Additional fuel tanks were incorporated into the drooped leading edge, which were claimed to improve the Cheetah's radius of action by almost 100 kilometers (just over 60 miles).
Official and unofficial South African sources claim that the Cheetahs were very successful, and popular with their pilots. Compared to the earlier Mirage III's and F1's, this is probably true.
The Cheetah C's were more capable than anything preceding them in the SAAF inventory. In terms of their electronics and weapons systems, they could certainly have matched the 1980's-vintage MiG-23's and -27's, and Sukhoi Su-20/22's, that the SAAF encountered in Angola.
Due to the lower power of their engines, I don't believe they could have matched the Soviet aircraft in acceleration or top speed. One cannot believe claims from some South African sources that the Cheetah C was comparable in performance to the US F-15 Eagle.
SAAF Cheetah C over USS Forrest Sherman, Cape Town 2007
Despite its limitations, the Cheetah program was a success, albeit at a very high price. Including all research, development, tooling, purchase and production expenses, and averaging them across the 71 aircraft produced (16 D's, 16 E's, 38 C's and a single R - the latter not entering service), each Cheetah cost South Africa well over twice the price of a brand-new contemporary equivalent (e.g. the Mirage 2000) on the open market. Operating in a sanctions environment, there was no alternative.
The program updated obsolete third-generation jet combat aircraft to fourth-generation standards as far as their weapons and electronic systems were concerned, and provided the SAAF with an aircraft capable of handling any regional threat at the time. Fortunately, with the end of the Angolan War in the late 1980's, the collapse of the Soviet Union in the early 1990's, and the end of apartheid in 1994, no more sophisticated threats arose that would have required a more technologically advanced response.
During the 1990's the SAAF found itself in a budgetary crisis. Not surprisingly, the first democratically-elected post-apartheid government prioritized restoring balance to political, economic and social structures Funding was directed largely to such efforts. Furthermore, the military threats facing the country had almost completely evaporated, compared to the days of the Border War and international sanctions, which had driven the Cheetah program from its inception.
There was no longer a pressing need for combat aircraft, but a need to conserve the SAAF's much more restricted budget. The number of front-line aircraft was therefore slashed. Only one squadron was retained, operating 28 Cheetahs (a mixture of single-seat C's and two-seat D's, all powered by Atar 09K50 engines). The remainder of the Cheetah fleet was retired from SAAF service. A couple were used as development aircraft, but most were placed in storage. Some were later sold to other nations. The last Cheetahs were retired in 2008, and are presently being replaced by 26 Saab Gripen multi-role fighters.
72dpi.jpg)
SAAF Saab Gripen fighters
Sadly, these reductions in force and budgetary constraints caused major problems for the SAAF in retaining the services of its highly qualified and skilled pilots. Many of them saw no future for themselves in the new climate of politically correct restructuring, and resigned to pursue more lucrative opportunities elsewhere. Some became mercenary pilots of combat aircraft for other nations and/or organizations, where their superior flying skills and combat experience were greatly appreciated and well compensated.
The SAAF's budgetary and personnel problems have not abated since. It has been rumoured that only 8 trained pilots for its Saab Gripen fighters remain , down from 30 pilots in 2005 and 20 in 2008.
The SAAF is presently in the midst of a crisis as far as trained personnel are concerned . . . a very sad situation for a service that only two decades ago boasted pilots equal to, if not better than, those of most first-class air forces, including the USAF. The SAAF will probably never regain the very high standards it had attained by the end of the Border War in the 1980's.
And the sad end of the road for some Cheetahs:
More info on SAAF Mirages:
The Mirage F1 (click to follow links) 3 Parts, including the Border war:
Part 1 History of the F1
Part 2 The Border War: F1s in Combat
Part 3 Combat record and First Hand Account (Arthur Piercy)
(Source Wings and Wiki, other Internet sources. Not for gain, just a fan blog. No copyright infringement intended)
